Architectural Drafting

Welcome to my page! My name is Joana, I am a certified Computer Aided Drafting and Design Operator. I have over 6 years of experience drafting Architectural floor plans and engineer plans(roof framing and shear wall design). My current drafting services range from drafting complete new build floor plans to drafting remodels/home additions.

I am currently offering 2D Architectural Drawings for single family homes. These plans include floorplans, electrical layouts, front/side and rear elevations, roof plans, brochures and plot plans.

 Feel free to contact me any time and I will answer you directly. Thank you!

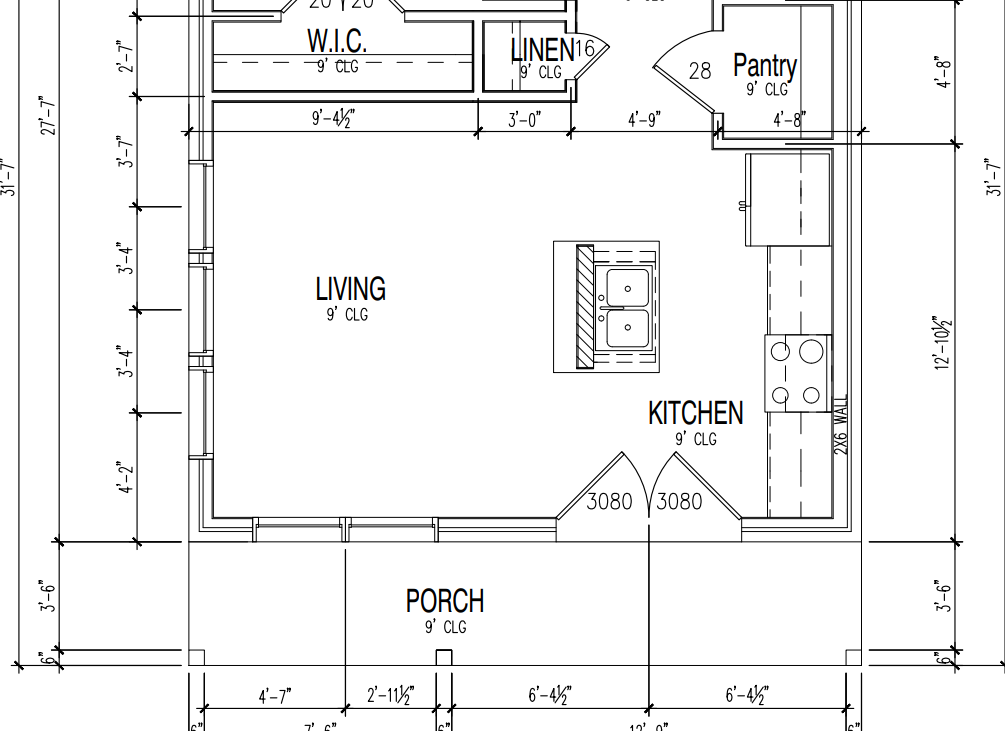

FLOORPLANS

I will draft 2D floor plans from sketches or make changes to your existing plans.

These plans include floorplan with dimensions, front/side/rear elevations, electrical layout, roof plan, and brochure for flooring layout.

REQUEST A QUOTE

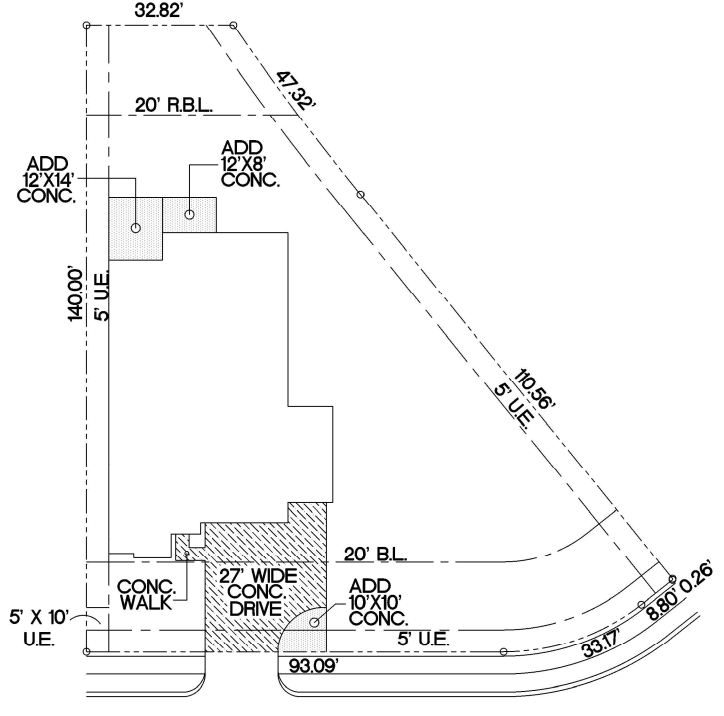

SITE PLANS

Making structural changes to your home/lot?

I will draft your site plan based on your up to date survey and add the structural changes.

These plans are often required for permits when adding on to your existing home.

*I am not a surveyor, please contact a licensed surveyor if you do not have a survey already.*

REQUEST A QUOTE
